Integrated medium frequency induction heating furnace

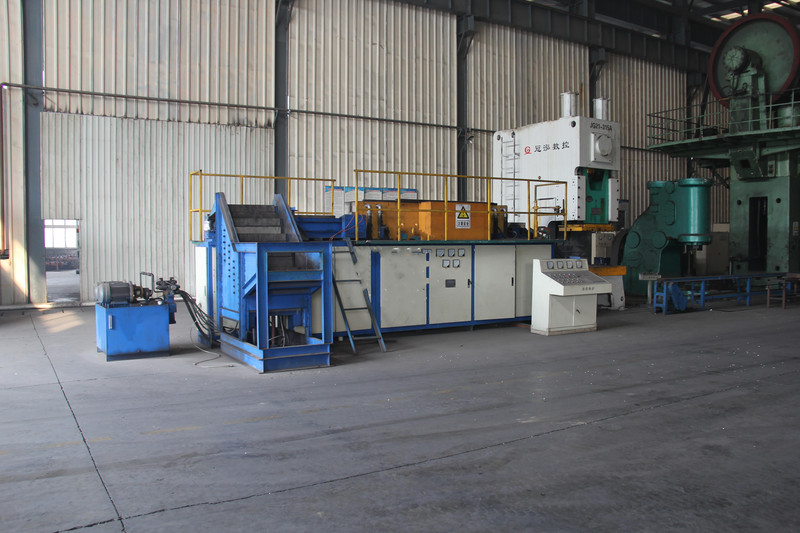

    Integrated medium frequency induction heating furnaceIt is a kind of equipment that applies medium frequency induction heating technology to metal heating. Its structure is to place the inductor heating coil on the medium frequency power supply. The bottom is the electrical system and the upper part is the heating sensor. It has a fully automatic feeding device and The rapid discharging device, as well as the temperature sorting and temperature measuring device, realize fully automatic operation of metal heating and obtain high-quality products. here,Haishan electric furnaceThe editor will introduce this setIntegrated medium frequency induction heating furnace。

one,Integrated medium frequency induction heating furnaceconstitute:

        Integrated medium frequency induction heating furnaceIt is mainly composed of medium frequency power supply, induction heating coil, cooling system, control system, furnace frame, discharging system, etc. The intermediate frequency power supply is the core part of the equipment. It can convert the industrial frequency alternating current into an intermediate frequency current and supply it to the induction heating coil. Induction heating coil is another important part of the equipment. It uses the principle of electromagnetic induction to convert medium-frequency current into thermal energy to heat metal.

two,Integrated medium frequency induction heating furnaceadvantage:

1. The feeding and discharging mechanism, coil, internal closed water cooling system, power supply and control system are integrated in design, with a compact and solid structure; the power supply can quickly and 100% start successfully at any temperature and under any load conditions, adapting to the requirements of frequent starting conditions; Adopting an integrated design, the bronze medal distance is short, which effectively reduces the energy consumption of the control system and saves 15%-20% more energy than ordinary equipment.

2. Adopt PLC intelligent control system - the whole machine has perfect self-protection function, advanced temperature control technology, high temperature accuracy, good temperature uniformity, rich detection, self-diagnosis, alarm functions and multiple safety protection devices.

      3、Integrated medium frequency induction heating furnaceDuring the heating process, the metal material can be heated quickly and evenly, and at the same time, it can also improve the plasticity of the metal and reduce the metal deformation resistance, making it easy to form and obtain good forging structure and mechanical properties. In addition, the equipment also has the advantages of high reliability, easy operation and maintenance.

three,Integrated medium frequency induction heating furnacework process:

The overhead crane places the box containing the blanks into the work area. The blanks are manually coded from the box and placed on the loading table. The turning system turns the materials into the V-shaped groove according to the instructions and the rhythm, and pushes the materials. The mechanism pushes the material smoothly into the heating furnace for heating. The material is heated in the furnace. When the material is exposed to the sensor for a certain length, the temperature is measured by the temperature measuring device. The heated material is discharged according to the beat. The rapid discharging device pulls out the material quickly and sorts the unqualified materials. , qualified materials are sent to the material receiving platform through slides or chain conveyors. The sorting mechanism sorts under- and over-temperature unqualified materials.
